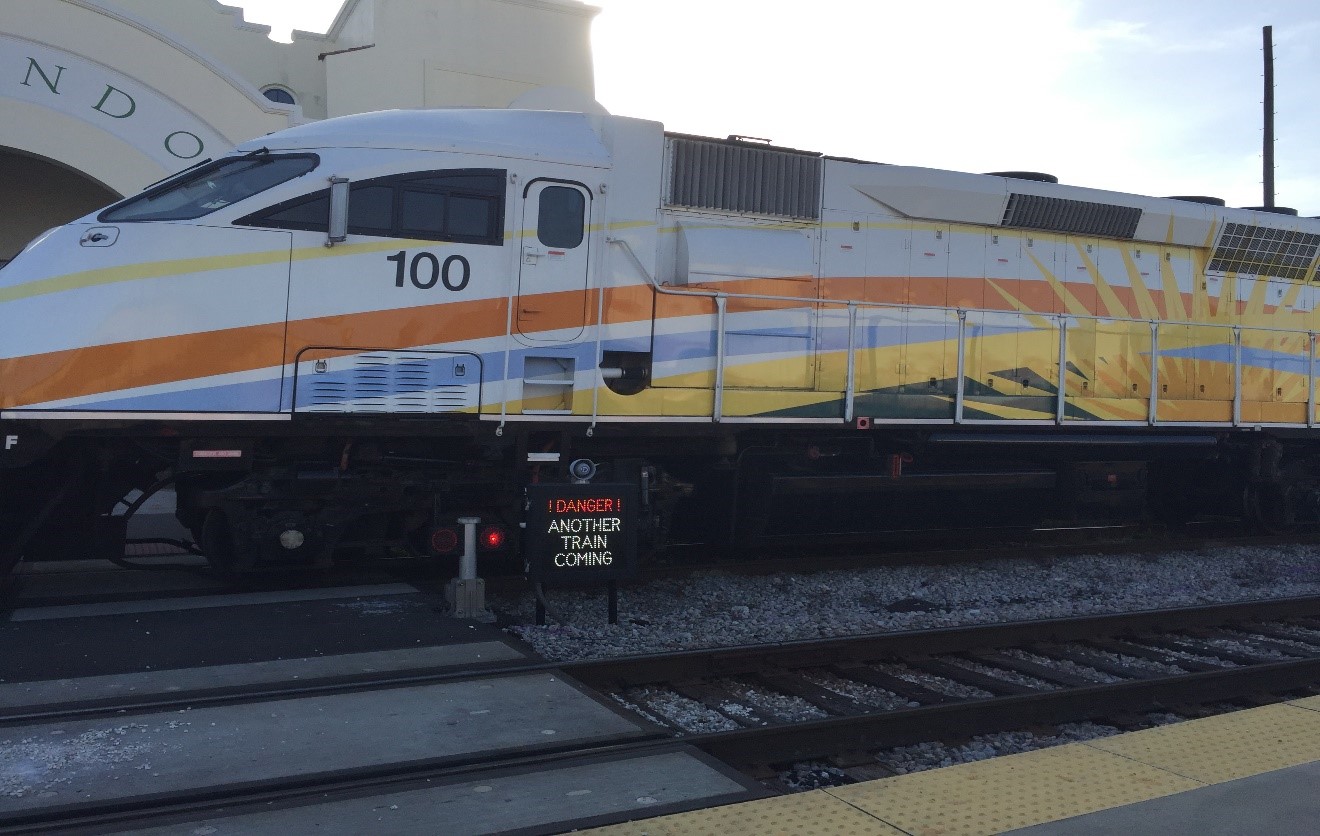

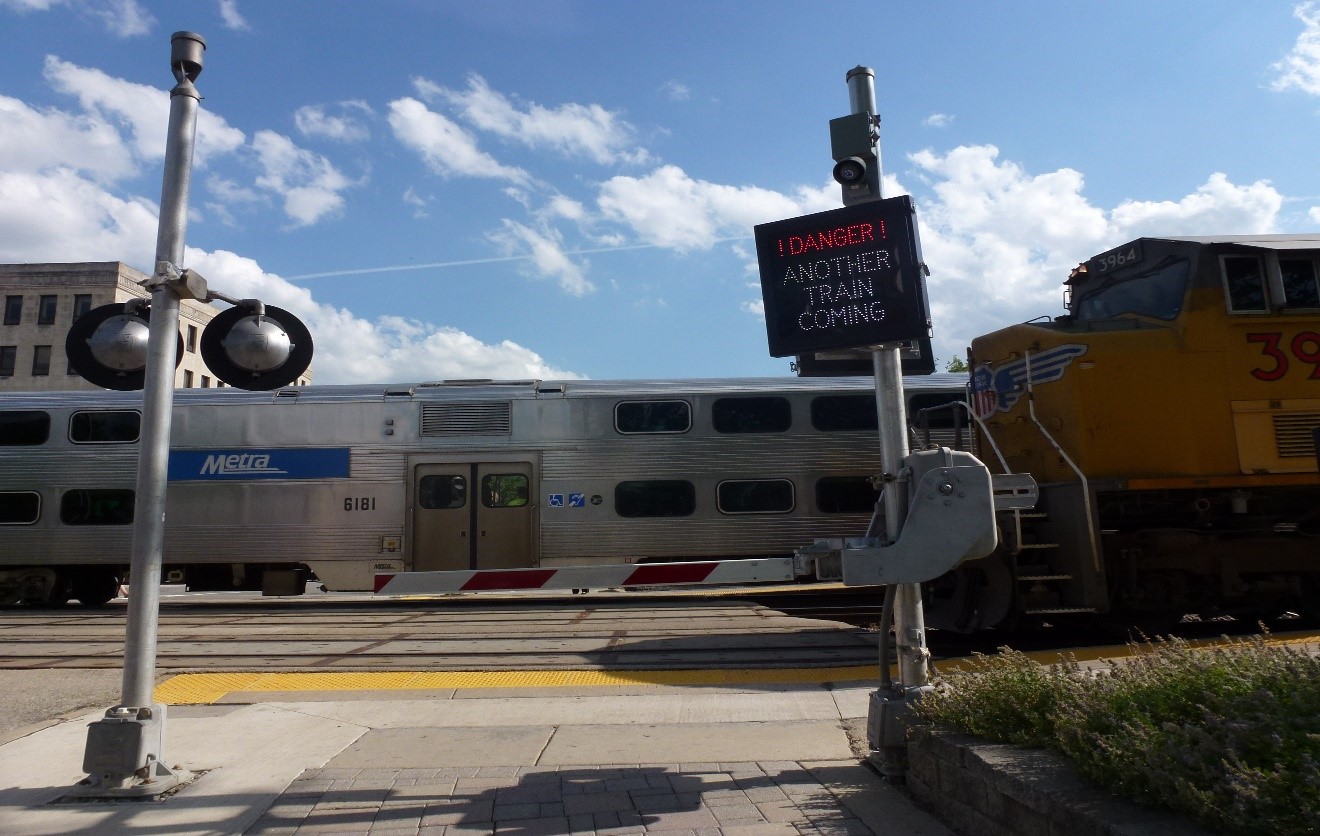

Second train warning refers to the use of an activated warning sign to warn users of a second train approaching to mitigate violations at a multi-track crossing. Variations of this measure include an audible warning accompanying the activating sign and/or indication of the direction from which the second train is approaching from. At multi-track crossings, a second train may arrive during a single activation of the crossing warning devices. Users may wrongly assume that it is safe to cross after the first train clears the crossing, and therefore circumvent the gates and risk getting struck by a second train. The warning system is intended to warn drivers, pedestrians, and cyclists to the presence of multiple approaching trains.
Several evaluations of second train warnings have been conducted. In an FRA-funded research study of an activated warning system consisting of a visual and auditory message, researchers recorded a substantial 50 percent reduction in the number of pedestrians crossing the tracks between the two trains when the crossing gates were down [1]. Results of that study also seemed to indicate that the system may have altered pedestrians’ decision making about when to violate (i.e., violate prior to either train arriving instead of waiting to violate between trains) but not if they should violate [1]. Another study reported a reduction of 32 percent of vehicles crossing the tracks between trains after the installation of an animated sign including the message “Warning- 2nd Train Coming” [2].
The body of research indicates that this measure provides a positive safety benefit to driver and pedestrian compliance with crossing warning devices. Second train warning devices should be considered for crossings in locations with high frequency of second train events and high volumes of pedestrian traffic during single crossing activations [3].
- A public education campaign (media, additional signage) should accompany the implementation of this measure, so users are informed on this change and what this new message means. [4]
- Visibility could be reduced under certain lighting conditions (e.g., glare); shading equipment or dynamic adjustment of brightness can be used to mitigate this. [4]
- This measure is normally used near commuter stations where multiple tracks and high volumes of pedestrian traffic are present. [3]
- Passenger railroads with station platforms in multiple-track territory should work cooperatively to develop a standardized system to clearly and accurately communicate to passengers in station areas and on platforms that a second train (in addition to any train currently occupying or approaching any station track) is approaching the station and that its arrival may be obscured by the train in the station. [6]
- Supplementary use of convex mirrors can be a simple way to provide pedestrians with a clearer view along the tracks, or to enhance their ability to see a train approaching from behind them. [6]
- These warning signs should be mounted as close as possible to the minimum height above the ground set by MUTCD, Part II, Section 2A-23. If they are mounted higher than the minimum height specified, pedestrians often will not see or will simply ignore the signs. [3]
- It is recommended that the sign be placed on the far side of the crossing (and on the near side as well if necessary for pedestrian visibility). [7]
- Users might respond better to a specific verbal warning rather than a visual device that may get ignored if distracted or not looking for it. [8]
- Second train warnings increase driver and pedestrian compliance with activated crossing devices. [1] [2]
- These warnings reduce uncertainty of why the grade crossing gates remain down after the passing of a train. [4]
- Warning equipment may require regular inspection and maintenance.
- These warnings may increase pedestrian propensity to violate gates before the first train, especially at crossings near stations where one of the trains is stopped at the station. [1]
- If the blank out sign is lit too long before a train arrives, pedestrians will ignore the sign. [5]
